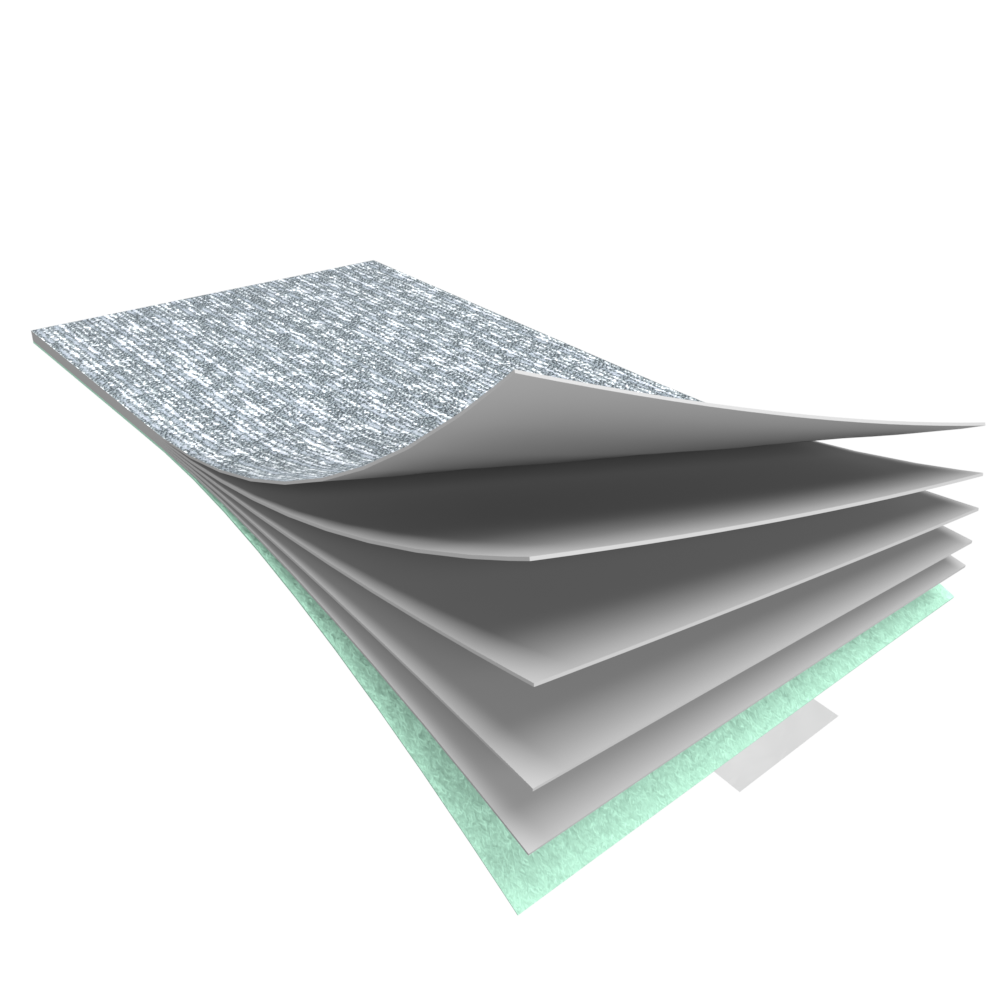

EcoLogix® ES Tile
 |
1. High performance precoat for maximum tuft bind.
2. Thermoplastic laminate for superior delamination strength.
3. Fiberglass reinforcement for unmatched stability.
4. Thermoplastic laminate.
5. Attached post-consumer recycled fiber matrix pad for comfort under foot
6. Die-cut into carpet tile.
|
ES -Two beads of pressure sensitive hotmelt adhesive with releasable liner.
Placement 6” from tile edge (Exception - 9 x 36 uses a single center bead)
| features / benefits |
Performance precoat, fiberglass reinforced thermoplastic layer laminated with a recycled fiber matrix pad containing 100% post-consumer material offering sound insulating properties. |
| primary |
Synthetic |
| stabilizer |
Fiberglass |
| pad weight |
20 oz/sy |
| backing thickness |
0.247-0.282" |
| dimensions |
24" x 24" (standard); optional sizes available |
| pad density |
8.5 – 9.5 lbs. per cubic foot |
| testing |
Impact Insulation Class (IIC) rating (ASTM E492-09/E989-06)
When paired with the appropriate EcoLogix products, results typically range from 54 –78, depending on subfloor assembly and EcoLogix products. For specific results, please contact your account manager. |
| environmental |
See specific product specifications for environmental information / certifications. |
| installation |
ES Shaw’s environmental self-adhesive system |
| warranty |
Carpet Tile Lifetime Commercial Limited Warranty for EcoLogix
Carpet Tile Lifetime Commercial Limited Warranty for EcoLogix with Stain and Color |
